An acknowledged leader in the industry for the manufacture of industrial pumps Upholding excellence in the manufacture of industrial pumps Market leadership with major share of the slurry pump. pulp stock pump and chemical pump manufacture. Manufacturer of Horizontal and Vertical Pumps with open and closed impeller construction that is best suited for Thermal Power, Pulp & Paper, Chemical, Petrochemical, Fertilizers, Refineries, Sugar, Basic Metal Industries, TP, ETP, etc.


Unitech Engineering

Features

  • Twin casing / Single casing design
  • Heavy duty & single-stage
  • Outer casing in CI/carbon steel
  • Inner casing in Ni-hard / Hi-chrome to take entire wear

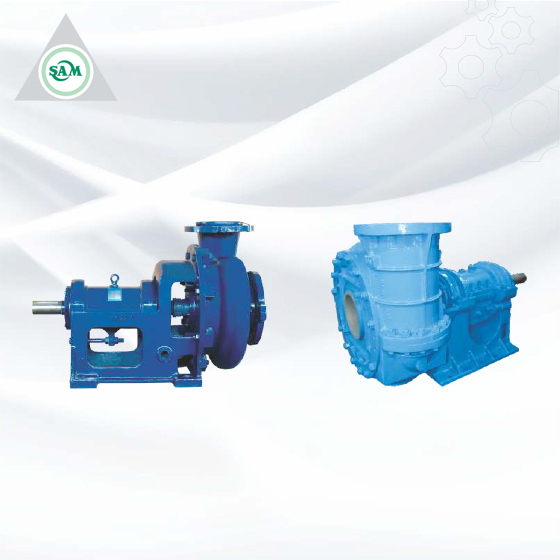

SLURRY PUMPS


Operating Range


Delivery Size DN 50 to 400 mm
Capacity Up to 2250 m3/hr
Head Up to 60 m/stage
Temperature Up to 140oC
Pressure Up to 25 bar

Application

  • Ash slurry in thermal power stations
  • Aluminium Industries - Hydrate, Seed, Bauxite and Red mud Slurries
  • Lime mud slurry, Milk of lime, Liquor up to 50% solids
  • Coal slurries & floatation tailings
  • Iron ore in beneficiation plants
  • Sand water mixtures
  • Liquids of abrasive and coarse-grained solids

Unitech Engineering

Features

  • Heavy Duty Centrifugal Design
  • Conforming to DIN 24256
  • Open impellers with renewable front wear plate and closed impeller with wear - ring
  • Simple external adjustment for impeller wear
  • Gland packed / mechanical seal

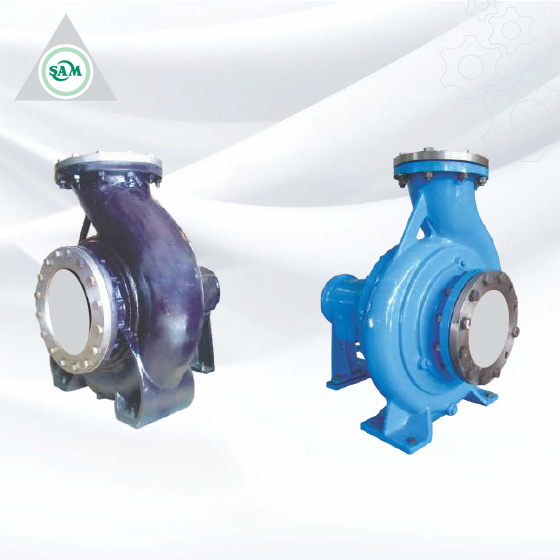

PULP & PAPER STOCK PUMPS


Operating Range


Delivery Size DN 32 to 350 mm
Capacity Up to 2250m /hr
Head Up to 80 m
Temperature Up to 140 C
Pressure Up to 22 bar

Application

  • Handling pulp & paper stocks upto 7% consistency
  • All liquor applications in basic metal & pulp & paper industries
  • Suitable for the high capacity requirement of acids, alkaline, corrosive slurries, etc.
  • Suitable for heavily contaminated liquids, raw sewage & sludge

Unitech Engineering

Features

  • Conforming to DIN 24256/ISO 2858
  • Back pull out design
  • Engineered to API - 610 - 6th edition
  • Only four bearing beds to cover 32 models
  • Closed impeller
  • Gland packed/mechanical seal

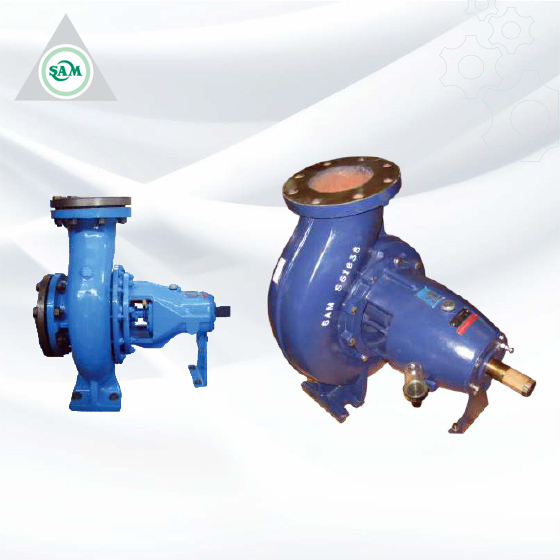

CHEMICAL PUMPS


Operating Range


Delivery Size DN 32 to 200 mm
Capacity Up to 750 m3/hr
Head Up to 150 m
Temperature Up to 200oC
Pressure Up to 22 bar

Application

  • Process, Petrochemicals, Refineries, Fertilizers, Paper, Sugar
  • Handling corrosive acids, alkalies
  • Hydrocarbons, Oils, Thermic fluids
  • Clarified water, backwater, white water, de-inking water, soft water, centri cleaner, etc., in pulp & paper mills

Unitech Engineering

Features

  • Barrel type construction
  • Multi-stage with single suction - closed impeller
  • Axial thrust compensated by balancing drum

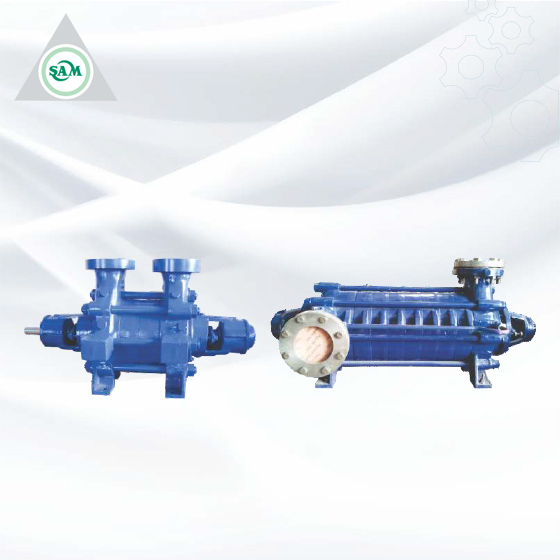

MULTI - STAGE PUMPS


Operating Range


Delivery Size DN 40 to 125 mm
Capacity Up to 350 m3/hr
Head Up to 600 m
Temperature Up to 1800 C
Pressure Up to 90 bar

Application

  • Boiler feedwater service
  • Main & auxiliary condensate extraction
  • General water & fire fighting systems
  • Mine - dewatering & descaling
  • High-pressure application in pulp & paper mills

Unitech Engineering

Features

  • Conforming to DIN 24255
  • Back pull out design
  • Gland packed/mechanical seal
  • Closed impeller construction
  • Only 3 bearing beds to cover 30 models

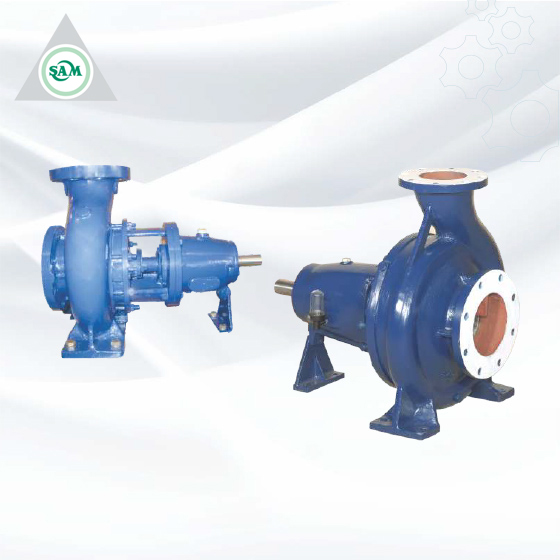

WATER PUMPS


Operating Range


Delivery Size DN 32 to 150 mm
Capacity Up to 550 m3/hr
Head Up to 100 m
Temperature Up to 120oC
Pressure Up to 16 bar

Application

  • General water supply in agriculture & industries
  • Fire fighting
  • Booster service
  • Clarified water, backwater, white water, de-inking water, soft water, centri cleaner etc., in pulp & paper mills

Unitech Engineering

Features

  • Axial split, single / two-stage
  • Double suction, radial impeller
  • High reliability & vibration free performances
  • Gland packing/mechanical seal
  • Reverse rotation available

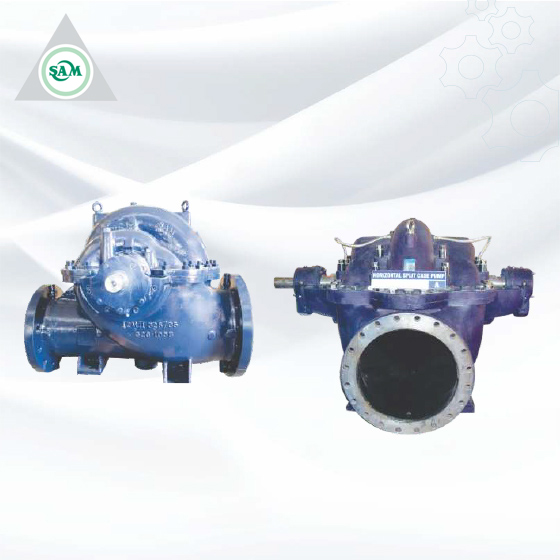

HORIZONTAL SPLIT CASE PUMPS


Operating Range


Delivery Size DN 50 to 700 mmm
Capacity Up to 4000 m3/hr
Head Up to 140 m
Temperature Up to 220oC
Pressure Up to 40 bar

Application

  • Water, Fire fighting
  • Fan pump, stock feed, stock circulation, centri cleaner application in pulp & paper mills
  • Stormwater, irrigation
  • Industries transfer works

Unitech Engineering

Features

  • Vertical suspended with open/closed impellers
  • Cantilever design / with intermediate bush bearing support
  • Simple mounting & self-priming
  • Upto 10mtrs submersion depth
  • Simple, fast external impeller adjustment

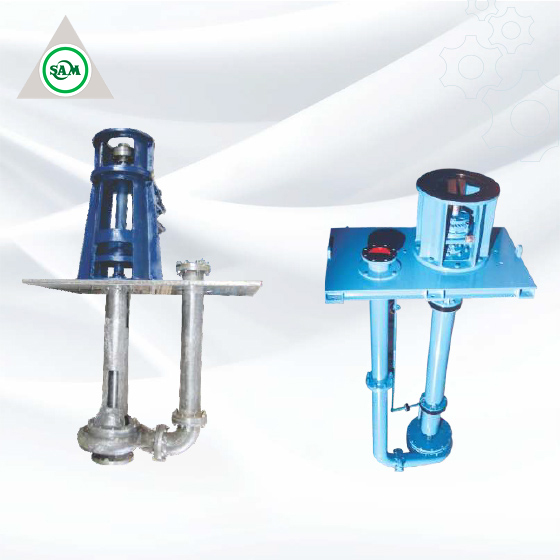

VERTICAL PUMPS


Operating Range


Delivery Size DN 25 to 300 mm
Capacity Up to 900m /hr
Head Up to 120 m
Temperature Up to 120 C
Pressure Up to 40 bar

Application

  • Suitable where space economy matters
  • Suitable for Acids, Alkalies & Slurries in basic metal industries
  • Waste water, sludge handling in pulp & paper industries
