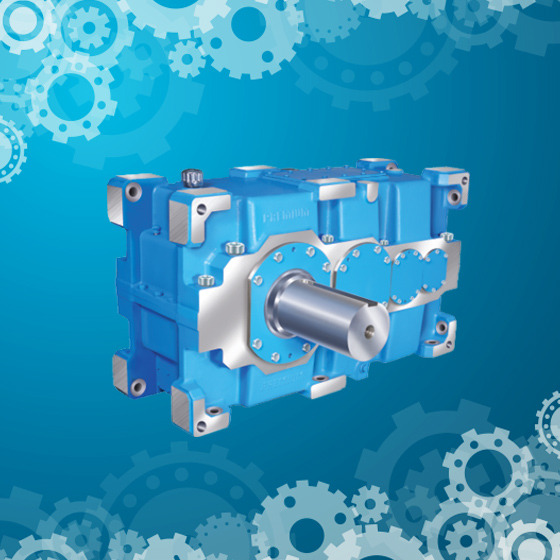

HELICAL GEARBOX

Case hardened and Profile ground Steel Gears with an inclined tooth to transmit the torque between Parallel / Right Angle shafts with minimum noise.

Range	Power range up to 5500 kW Reduction Ratio range up to 650:1
Sizes	From 80 mm to 1000 mm center distance
Type	Helical & Bevel helical in horizontal/vertical models
Applications	For applications > 50 kW. Agitators, Conveyors, Crushers, Cranes, Larger Ball Mills, Mixers, Aerators, Coal Pulverising Mills, Plastic Extruders, Fin Cooler Drives, Kneaders, Thickeners
Industries	Sugar, Cement, Paper, Solvent Extraction, Rubber, Steel, Power Plants, Mines and Minerals, Chemical

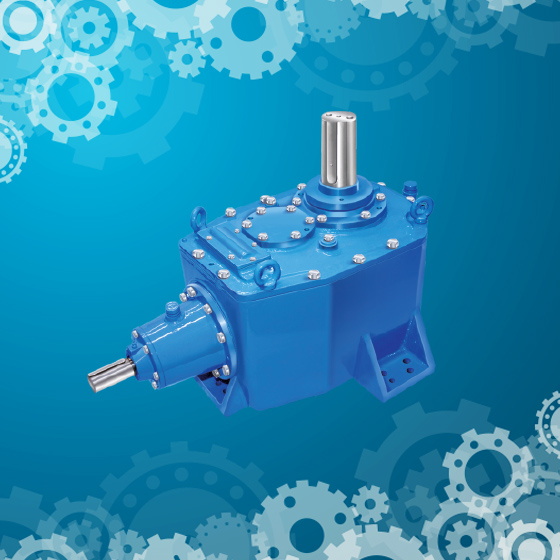

BEVEL HELICAL COOLING TOWER GEARBOX

Case Hardened and Lapped steel spiral bevel gears to transmit the torque between Right Angle shaft. Unicase design with Pumpless Lubrication and three-point Foundation.

Range	Power range up to 600 kW. Reduction Ratio up to 20.9:1
Sizes	From 140 mm to 450 mm center distance
Type	'PC' Series and 'RC' Series
Applications	Cooling Tower and Heat Exchanger Application
Industries	Sugar, Cement, Paper, Solvent Extraction, Plastic, Steel, Power Plants, Mineral Processing.

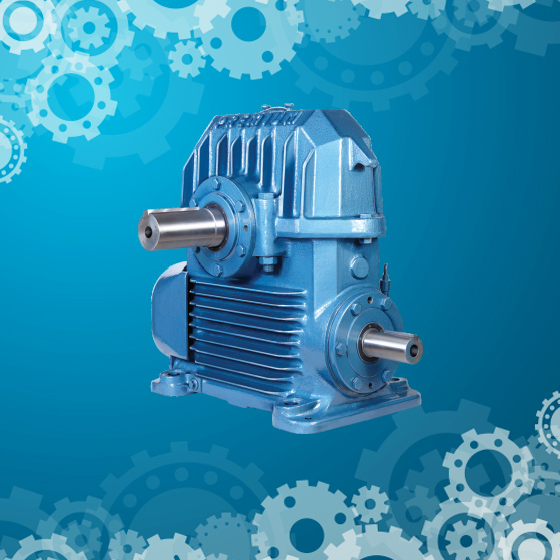

WORM GEARBOX

The important features include high efficiency and load carrying capacity combined with long life and reliable service.

Range	Power range up to 250 kW Reduction Ratio range up to 4900:1
Sizes	Upto 710 mm center distance
Type	Under Driven / Over Driven / Vertical Units in Single & Double reduction
Applications	Conveyor, Material Handling, Ball Mill, Agitators, Cranes
Industries	All Process Industries

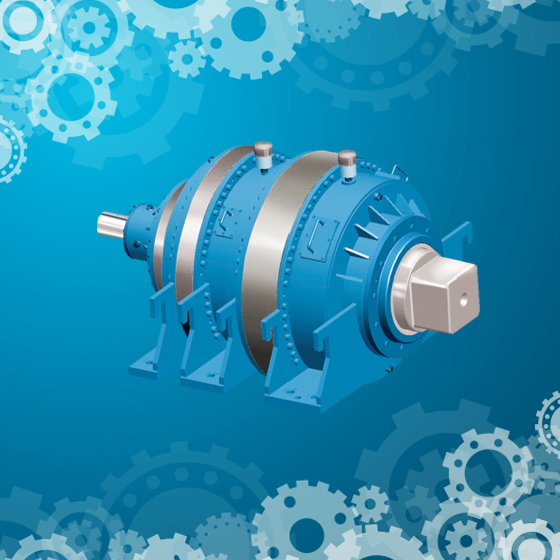

PLANETARY MILL GEARBOX

Planet and sun gears are manufactured from high alloy steel and heat-treated for case carburizing to achieve optimum strength and wear resistance. Gear Profiles are ground to reduce noise level and optimized maximum root strength and minimum sliding contact to ensure high efficiency.

Range	Torque range up to 4072 kNm
Sizes	Up to 2500 mm
Applications	Sugar Mill, Coal Pulverizing Mill, Cement
Industries	Sugar, Cement, Power Plants

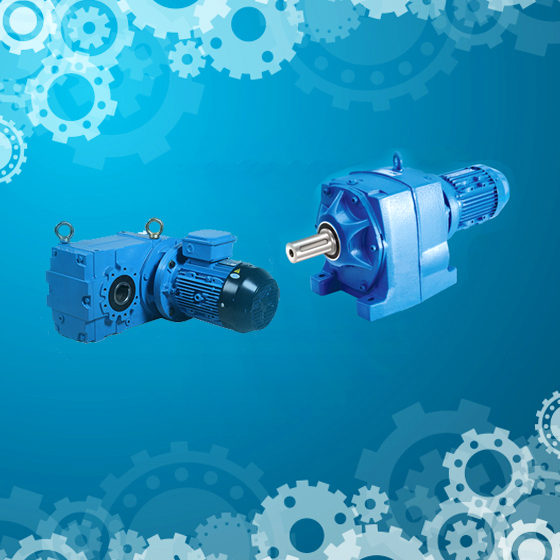

PREMIUM STEPHAN GEARED MOTOR

World-class quality based on the latest European technology. High power transmission-to-weight ratio felicitating easy handling. Being modular in design, can be used with any other standard motor.

Range	From 0.12 kW to 90 kW
Sizes	From 25 mm to 120 mm output shaft diameter
Type	Co-axial MI and MS Series
Applications	Packaging, Mixing, Conveyor, Cranes, etc.
Industries	Food Processing, Material Handling, Paper, Sugar, Cement, Pharmaceuticals, etc.

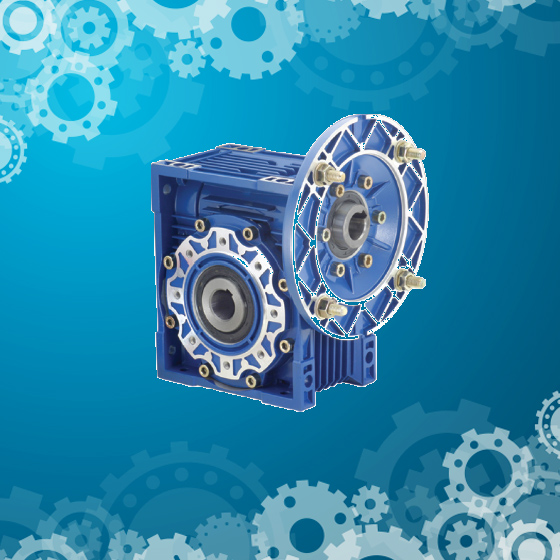

'ALM SERIES' ALTRA WORM GEARBOX

Die-cast Aluminium case, worm gear units with electric motor/ mechanical varistor in double stage suitable for power up to 15 kW

Range	Power range from 0.06 kW up to 7.5 kW Ratio range from 7.5:1 up to 1600:1
Sizes	Center Distance from 30 mm up to 130 mm
Type	Worm - Available in Foot & Flange mounted versions
Applications	Conveyors, Packaging, Loading, Automation
Industries	Material Handling, Pharma, Packaging, Food Processing etc.

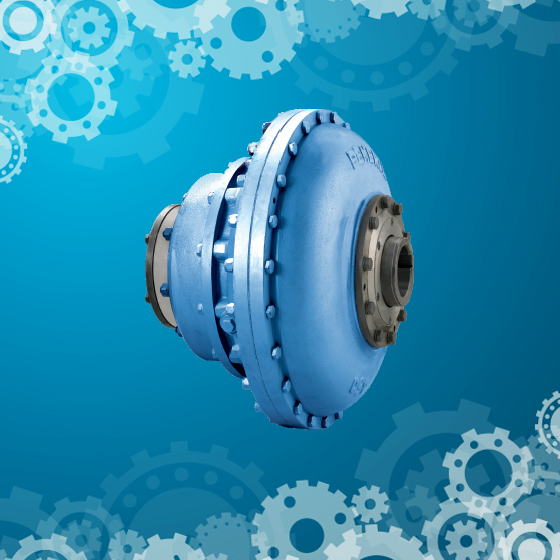

CONSTANT SPEED FLUID COUPLING

Transmission of power through hydrokinetic energy in the stream of oil/water between the Impeller & Runner of the coupling. A fixed quantity of oil is used in the working circuit and delivers fixed speed on the output side.

Range	For power up to 1500 kW
Sizes	From 8" to 41" circuit diameter
Type	FCU / FP / DFC / DFP / PSS / HTC / AFC / SFC / SDFC / WDFC / SFU / STC
Applications	Conveyors, ID Fans, Ball mills, Crushers, Slurry pumps, Agitators, Cranes, etc.
Industries	Thermal Power Plants, Steel Industry, Cement, Mines, Chemical, Oil, Sugar, etc.
